Strategic Tooling Solutions for Aerospace Landing Gear Piston Housing Fabrication

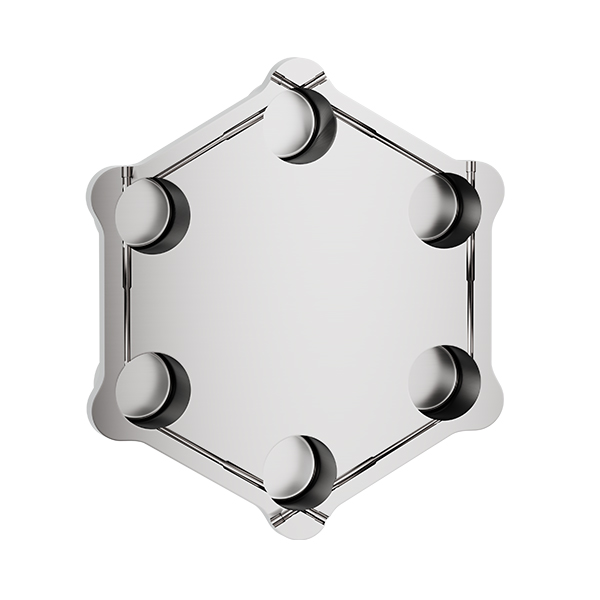

The piston housing is a non-structural but functionally critical component used in landing gear braking systems. It acts as precision housing for hydraulic pistons, ensuring proper sealing, alignment, and smooth actuation, enabling the efficient conversion of hydraulic pressure into controlled braking force. It is typically manufactured from Aluminium to reduce weight, ensure excellent machinability, and provide adequate heat dissipation and corrosion resistance in braking environments.

Advanced hydraulic landing gear systems rely on sophisticated shock-absorption architectures to manage the extreme kinetic forces of aviation.

Central to these systems are piston housings, critical structural elements that facilitate piston travel, contain high-intensity hydraulic pressure, and preserve sealing integrity during the rapid transitions of gear extension and touchdown impact.

Because these housings are subjected to relentless mechanical stress, their manufacturing process demands absolute dimensional fidelity, unwavering process stability, and flawless surface quality. Mikron Tool provides a portfolio of carbide cutting technologies engineered specifically for the intricate requirements of piston housing production. Our solutions empower manufacturers to achieve repeatable precision and pristine, burr-free results in the most challenging high-strength aerospace alloys.

The Crucial Role of Piston Housings in Flight Safety

Piston housings are the mechanical heart of hydraulic shock management in landing gear. They must orchestrate continuous motion while resisting radical pressure shifts, high-frequency vibration, and sudden structural loading. To ensure mission-critical reliability, these components require:

• Absolute dimensional stability under peak hydraulic loads.
• Endurance against vibration-induced fatigue and impact stress.
• Refined internal finishes for frictionless piston movement.
• Geometric perfection to sustain leak-proof sealing interfaces.
• Superior resistance to environmental corrosion and operational wear.

Fulfilling these rigorous standards necessitates a machining approach that can master complex internal features with consistent accuracy across every production cycle.

High-Performance Machining for Toughened Aerospace Alloys

Landing gear piston housings are typically fabricated from metallic materials selected for their extreme mechanical properties. These include:

• High-strength  Titanium alloys.
• Precipitation-hardened (PH) Stainless Steels.
• High-performance aerospace-grade steels.

These alloys are notoriously difficult to process due to their inherent hardness, poor thermal conductivity, and tendency to work-harden during the cut. Mikron Tool counters these obstacles with advanced tool geometries, reinforced cutting edges, and specific coating technologies designed to maintain thermal stability and edge sharpness throughout the machining workflow.

Optimized Solutions for Titanium and Stainless Steel Housings

Titanium alloys are favored in piston housing design for their exceptional strength-to-weight ratio. However, their chemical reactivity can lead to rapid tool degradation. Our Titanium-specific cutting tools deliver low-friction cutting edges and cooling technology that minimize heat generation at the point of contact, ensuring clean chip evacuation and a surface finish optimized for high-pressure seals.

Similarly, for housings made from precipitation-hardened Stainless Steel - often chosen for parts exposed to corrosive environments - our tools offer the rigidity required for deep internal features. By maintaining a smooth cutting action and minimizing vibration, our technologies produce the surface integrity necessary for safety-critical hydraulic components.

Ensuring Hydraulic Integrity through Burr-Free Execution

In the world of high-pressure hydraulics, even a microscopic burr is a significant risk. Internal defects can compromise seal longevity, obstruct piston travel, or introduce contaminants into the fluid system. Burr-free machining is not merely a preference; it is a requirement for operational safety.

Mikron Tool’s cutting technologies ensure:

• Streamlined fluid pathways that facilitate efficient hydraulic flow.
• Substantial cost savings by eliminating the need for manual secondary finishing.
• Enhanced component life through improved surface and edge integrity.

Precision for Intricate Internal Geometries and Flow Passages

Piston housings are defined by complex internal architectures that require micron-level tolerances. Our specialized cutting tools are engineered to excel in the production of:

• Deep internal cavities with high-aspect ratios.
• Precision alignment bores and guiding surfaces.
• High-accuracy cross-holes and internal oil passages.
• Sealing grooves with exacting dimensional requirements.

Mikron Tool provides the cutting technology and process control needed to manufacture these intricate features reliably, whether in the prototype laboratory or during high-volume serial production.

Advancing Aerospace Manufacturing Reliability and Productivity

With a legacy of excellence in high-precision carbide tooling, Mikron Tool supports the landing gear industry with integrated solutions that harmonize quality with manufacturing throughput. Our material-specific geometries and optimized machining parameters extend tool longevity, reduce scrap rates, and stabilize the production of high-value components.

From Titanium hydraulic cylinders to Stainless Steel piston housings, Mikron Tool delivers the accuracy, durability, and burr-free performance required to meet the most demanding mechanical and regulatory standards in modern aerospace engineering.
