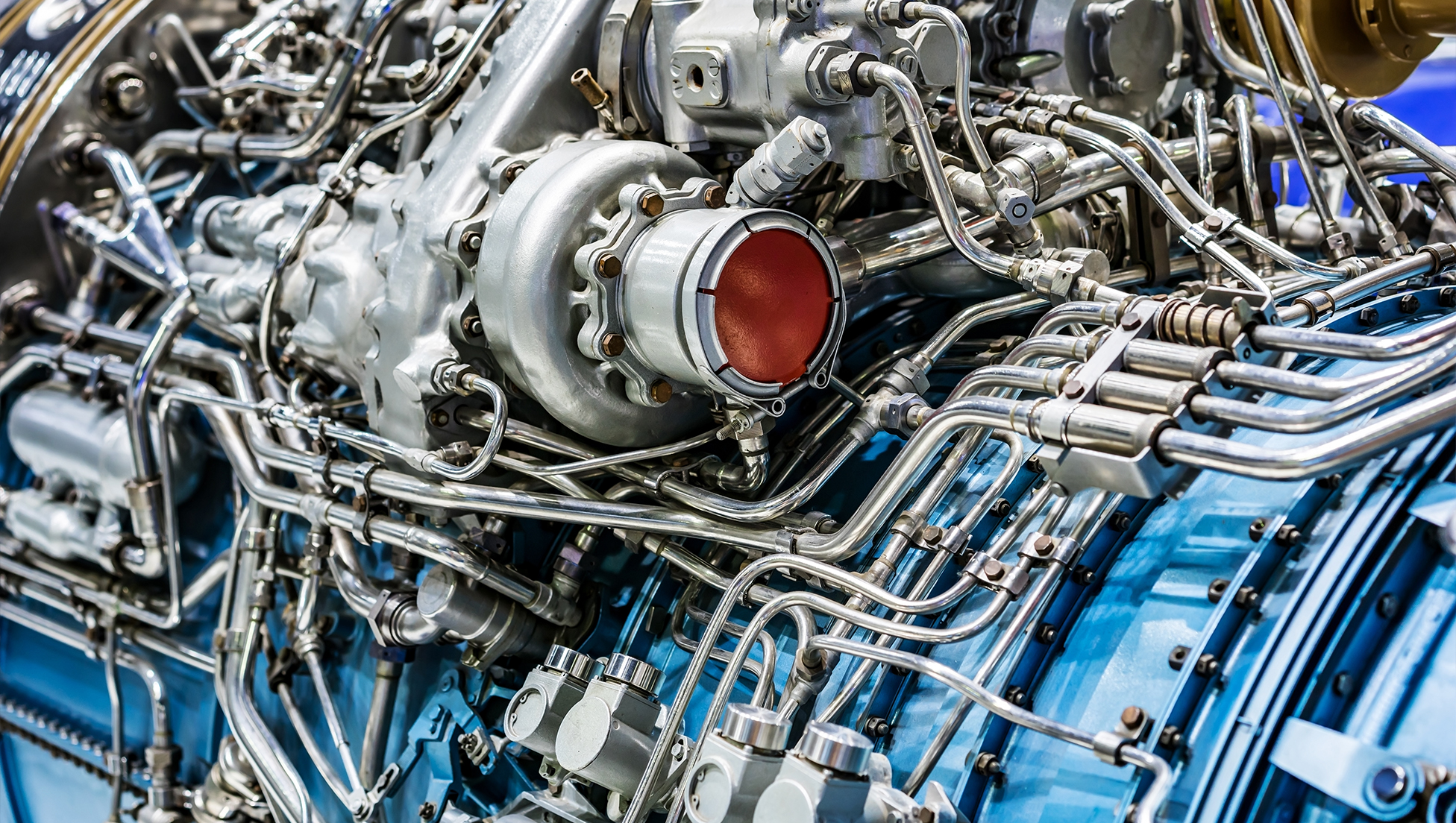

Advanced Tooling Strategies for Critical Aerospace Hydraulic Architectures

Modern aviation relies on high-performance hydraulic systems to execute highly accurate maneuvers.

From the deployment of landing gear and braking sequences to the precise movement of flight-control surfaces and thrust reversers, these systems must operate with absolute reliability under extreme environmental and mechanical pressure. The integrity of these fluid power systems is fundamentally rooted in the micron-level precision of their internal machined components.

Mikron Tool provides specialized carbide cutting tool solutions engineered specifically for the complexities of hydraulic hardware production.

Our technologies deliver the process stability and repeatable accuracy required to manufacture pressure-critical channels, sealing interfaces, and complex actuator bodies found in safety-critical aerospace applications.

Engineering Precision for High-Pressure Actuation Systems

Aerospace hydraulic assemblies demand components that can manage intense internal fluid dynamics while maintaining structural durability.

The manufacturing process for these parts involves intricate internal geometries, including deep holes, intersecting pathways, and specialized sealing grooves.

We support the high-precision fabrication of various flight-critical parts, such as:

• Actuator housings and cylinders
• Complex valve manifolds and blocks
• High-pressure fittings and fluid connectors
• Servo-control modules and pump housings
• Accumulator bodies and piston guides

Achieving superior surface finishes and exacting dimensional control in these features is mandatory to ensure the functional efficiency and safety of the entire aircraft. Our cutting solutions are optimized to meet these rigorous requirements across the entire spectrum of hydraulic manufacturing.

Overcoming Material Challenges in Hydraulic Fabrication

Materials used in aerospace hydraulics are selected for their high strength-to-weight ratios, fatigue and corrosion resistance. However, these same properties, often found in Titanium alloys, precipitation-hardened Stainless steels, and high-strength Aluminum, create challenging obstacles during the machining process.

Manufacturers frequently face issues such as intense thermal concentration at the cutting edge, rapid tool wear, and the formation of stubborn burrs. Mikron Tool counters these difficulties through:

• Optimized cutting geometries that reduce mechanical stress on the workpiece.
• Advanced cutting edge preparation to ensure stable performance.
• High-performance coatings designed for extreme heat resistance and wear protection.
• Strategic chip flushing to prevent blockage in restricted internal fluid passages.

The Necessity of Burr-Free Geometries for Leak Prevention

In high-pressure hydraulic environments, the quality of the seal is the difference between system success and catastrophic failure. Even a microscopic burr at a junction can create a leak path, compromise a sealing interface, or prevent proper assembly.

Our cutting tools are specifically engineered to achieve burr-free results, ensuring:

• Pristine edges in critical high-pressure sealing zones.
• Structural stability when machining thin-walled sections.
• Ultra-smooth internal surfaces to facilitate laminar fluid flow.
• Lowered production costs by eliminating the need for manual secondary finishing.

Optimizing Deep Internal Fluid Pathways

The operational life of a hydraulic system is defined by its internal geometries. Precision in hole creation and cavity finishing ensures controlled piston movement and long-term pressure retention. Our specialized solutions allow manufacturers to execute:

• Deep hole production with exceptional straightness and surface quality.
• High-accuracy internal diameters for smooth piston guidance.
• Tight-tolerance grooves for specialized hydraulic seals.
• Clean intersections where fluid pathways meet.

By focusing on these intricate features, we help reduce internal friction and wear, significantly enhancing the durability of the hydraulic system.

Process Stability: From Design to Full-Scale Production

Success in aerospace manufacturing requires more than just precision; it requires absolute consistency.

Mikron Tool technologies are developed to maximize both throughput and reliability through:

• Chatter-free tool designs for long-reach applications.
• Controlled cutting forces to minimize part deflection in delicate structures.
• Extended tool longevity even when processing high-strength aerospace alloys.
• Optimized parameters that reduce overall cycle times and scrap rates.

From the initial validation of a prototype to the scaling of high-volume series production, our engineering team provides material-specific recommendations and custom tool designs to solve the most unique hydraulic machining challenges.

Empower Your Hydraulic Manufacturing Performance

Whether your production focus is on complex valve manifolds, actuator housings, or high-pressure fluid distribution components, Mikron Tool delivers the technical expertise and cutting-edge hardware required for success.

Our solutions enable manufacturers to exceed stringent aerospace certification standards while maintaining the cost efficiency and productivity necessary in today’s competitive landscape.
